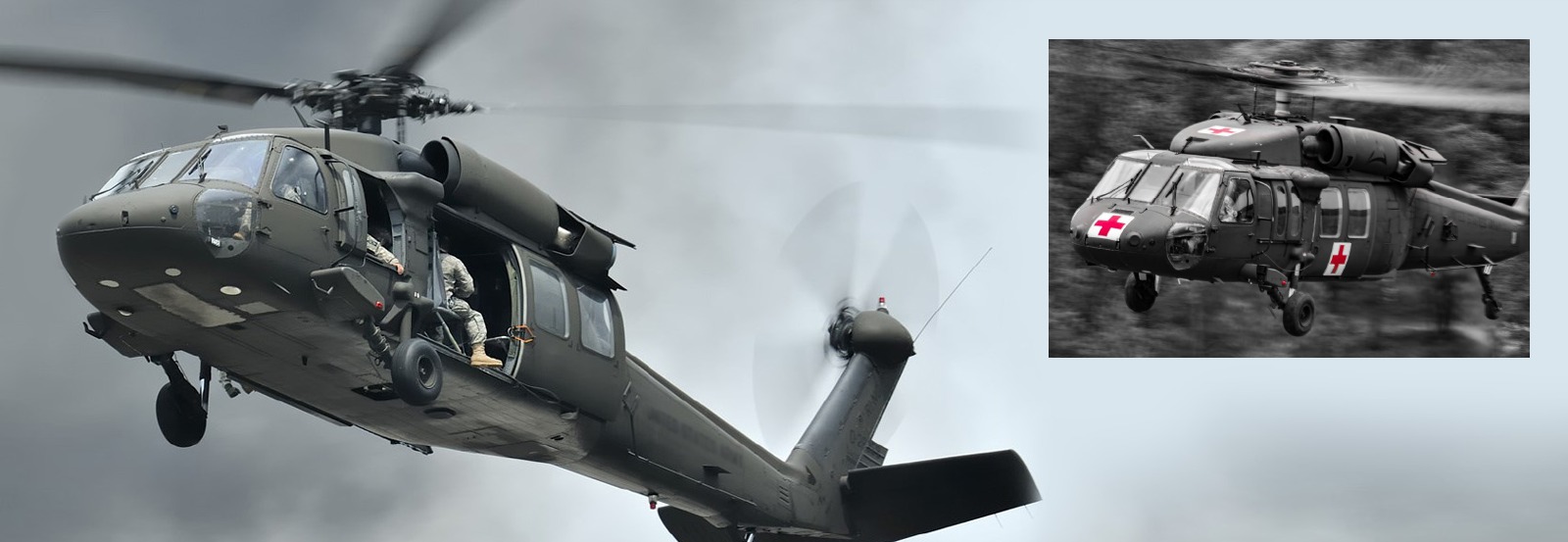

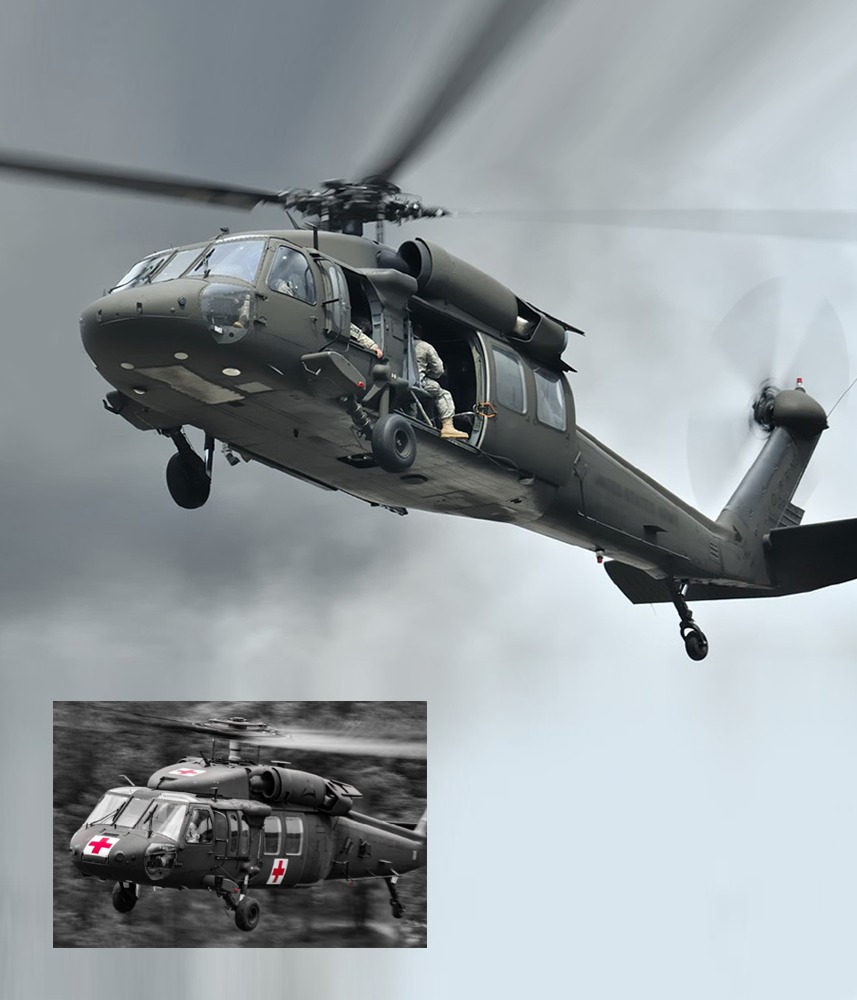

BMS UH-60L+ HELICOPTERS

Introduction:

The UH-60L+ is the best medium lift multi-role helicopter in the world, deployed by more than 35 countries across the globe, and known for its reliability and durability.

Its versatility, durability and performance make it highly adaptable to a wide variety of configurations, missions, and environments. BeMotion Aircraft production, licensed overhaul, and maintenance facilities provide unparalleled aircraft modernization, overhaul, and upgrade options.

BeMotion Aircraft support parts and maintenance programs, and pilot, special mission crew training programs.

General Specifications:

  • Model: UH-60L
  • Engines: Two (2) General Electric T700-GE-701D turboshaft engines 2,200 shp (1,641 kW) each
  • Length: 64 feet, 10 inches (19.6 meters)
  • Height (version variable): 13 to 17 ft (3.9 to 5.m)
  • Rotor Diameter: 53 ft 8 in (16.4 meters)
  • Empty weight: 10,470 lbs. (4,746 kg)
  • Payload: 11,500 lbs. (5,216 kg) 22,000 lbs.
  • Max. take-off weight: 22,000 lbs. (10,000 kg)
  • Max gross weight (ferry): 24,500 lbs.
  • Cargo Hook: 9,000 lbs.
  • Max Cruise Speed (MCP): 4000' 95°F 152 kts
  • Max Cruise Speed: 2000' 70°F 159 kts SLS 155 kts
  • VNE: 193 kts
  • Rate of Climb (95% MRP): 4,000' 95°F 1,550 fpm 2,000' 70°F 2,750
  • Range: fpm 280 nmi (520 Km)
  • Endurance: 3.7 hours
  • Speed: 180 knots (333 km/h)
  • Service ceiling (ISA day): 19,150 ft
  • Hover ceiling (MRP-OGE) Standard day: 11,125 ft 95°F day 7,650 ft 70°F day 9,375 ft

Highlights:

  • Twenty-two (22) UH-60L currently available and for sale
  • Available with upgrades, options, and in several configurations
  • Pilot, Special Air Crew, and Maintenance Training Programs•FAA Certificate of Airworthiness & Registration
  • Warranty-One (1) Year or 100 Flight Hours

Multi-Mission Configurations:

  • Combat Assault - Troop Insertion and Extraction
  • Utility - Cargo and Equipment
  • ISR and Target Acquisition
  • Direct Action Gunship
  • Medevac
  • Search and Rescue
  • Counter-mine warfare

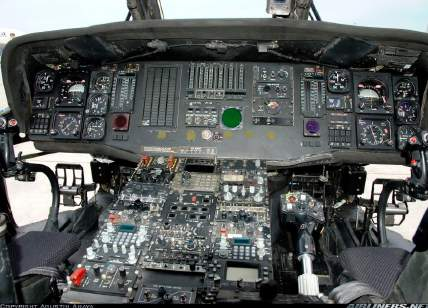

Analog Cockpit Instrumentation

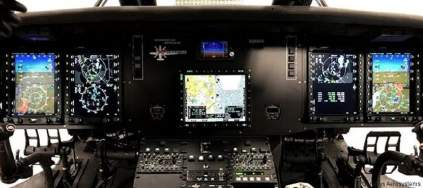

Genesys EFIS Glass Cockpit Upgrade

IDU-680 Displays with PFD and MFD formats-configured to:

  • Show flight instruments
  • Moving map
  • HIS
  • Flight planner
  • Traffic
  • Terrain
  • Weather radar
  • Datalink, video
  • Radio/audio management
  • Engine displays

IDU-680 Systems also Feature:

  • Flight Management System
  • Integrated Class-A TAWS
  • Genesys open architecture for interfacing special-missionequipment.

Health and Usage Monitoring System (HUMS)

HUMS System—Smart Helicopter is a sensor-basedmonitoring system that enables Condition-Based Maintenance by measuring the health and performance of mission-critical components on aircraft.

  • Continuous vibration monitoring of drivetrain
  • Performs Rotor, Track and Balance
  • Actionable information for maintenance decisions
  • Pinpoints mechanical faults before catastrophic failure

Avionics Package:

  • Foresight MX HUMS Spider X FDR
  • Trotter Datavault ATU Telemetry System
  • Modern Aircraft Maintenance Tracking
  • Two (2) MD93 Clocks /USB Dual JA95
  • Dual TDFM 136B
  • Garmin 345R Transponder (ADS-B In/Out)
  • Dual Garmin GTN 750
  • Garmin 800TAS
  • Appareo AIRS 400 FDM
  • UH-60 Electric APU Starter Kit
  • 5-Axis ELT Hobbs Meter PA System
  • JA35 Audio Summing Amplifier Remote Mount
  • JA34 Universal Radio Adapter with Bluetooth
  • Onboard Cargo Hook P/N 200-438-00
  • Onboard Cargo Hook Indicator
  • Roller Shackle P/N 232-814-00
  • Aerocraft UH-60 Vertical Reference Kit
  • 1 x Left Bubble Window
  • 1 x Left Gear Fairing
  • 2 x Extended Utility Handle 1 x Forward LH Step
  • Motor Assembly w/Starter, and Wiring Kit Pulse Lights
  • USFS Hi-vis Rotor Blade Paint
  • Start Fuel Reclamation Kit Ballast Box WAT LED Anti-Collision and Position Lights
